1000BASE 80KM BIDI 1.25G TX1490/RX1550nm TX1550/RX1490nm LC
General:
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
1000BASE-BX SFP:
Tx: 1490nm/Rx: 1550nm BIDI SFP Transceiver
Tx: 1550nm/Rx: 1490nm BIDI SFP Transceiver
Features:
Single LC receptacle optical interface compliant
Hot-pluggable SFP footprint
1490nm DFB laser transmitter
RoHS compliant and Lead Free
Up to 80km on 9/125um SMF
Metal enclosure for lower EMI
Single 3.3V power supply
Low power dissipation <700mW
Commercial operating temperature range: 0°C to 70°C
Applications:
Gigabit Ethernet
Fiber Channel
WDM Application
1.06 Gb/s Fibre Channel
B/D Transceiver Series:
| GLC-BX-D20 | 1.25G DFB Tx1490nm/Rx1310nm 20km LC/SC BIDI |
| GLC-BX-U20 | 1.25G FP Tx1310nm/Rx1490nm 20km LC/SC BIDI |
| GLC-BX-U40 | 1.25G DFB Tx1310nm/Rx1490nm 40km LC/SC BIDI |
| GLC-BX-D40 | 1.25G DFB Tx1490nm/Rx1310nm 40km LC/SC BIDI |
| GLC-BX-U70 | 1.25G DFB Tx1490nm/Rx1550nm 70km LC/SC BIDI |
| GLC-BX-D70 | 1.25G DFB Tx1550nm/Rx1490nm 70km LC/SC BIDI |
| GLC-BX-U80 | 1.25G DFB Tx1490nm/Rx1550nm 80km LC/SC BIDI |
| GLC-BX-D80 | 1.25G DFB Tx1550nm/Rx1490nm 80km LC/SC BIDI |
| GLC-BX-U120 | 1.25G DFB Tx1490nm/Rx1550nm 120km LC/SC BIDI |
| GLC-BX-D120 | 1.25G DFB Tx1550nm/Rx1490nm 120km LC/SC BIDI |
| GLC-FE-100BX-U10 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 10km |
| GLC-FE-100BX-D10 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 10km |
| GLC-FE-100BX-U20 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 20km |
| GLC-FE-100BX-D20 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 20km |
| GLC-FE-100BX-U40 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 40km |
| GLC-FE-100BX-D40 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 40km |
| GLC-FE-100BX-U80 | 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 80km |
| GLC-FE-100BX-D80 | 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 80km |
Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.

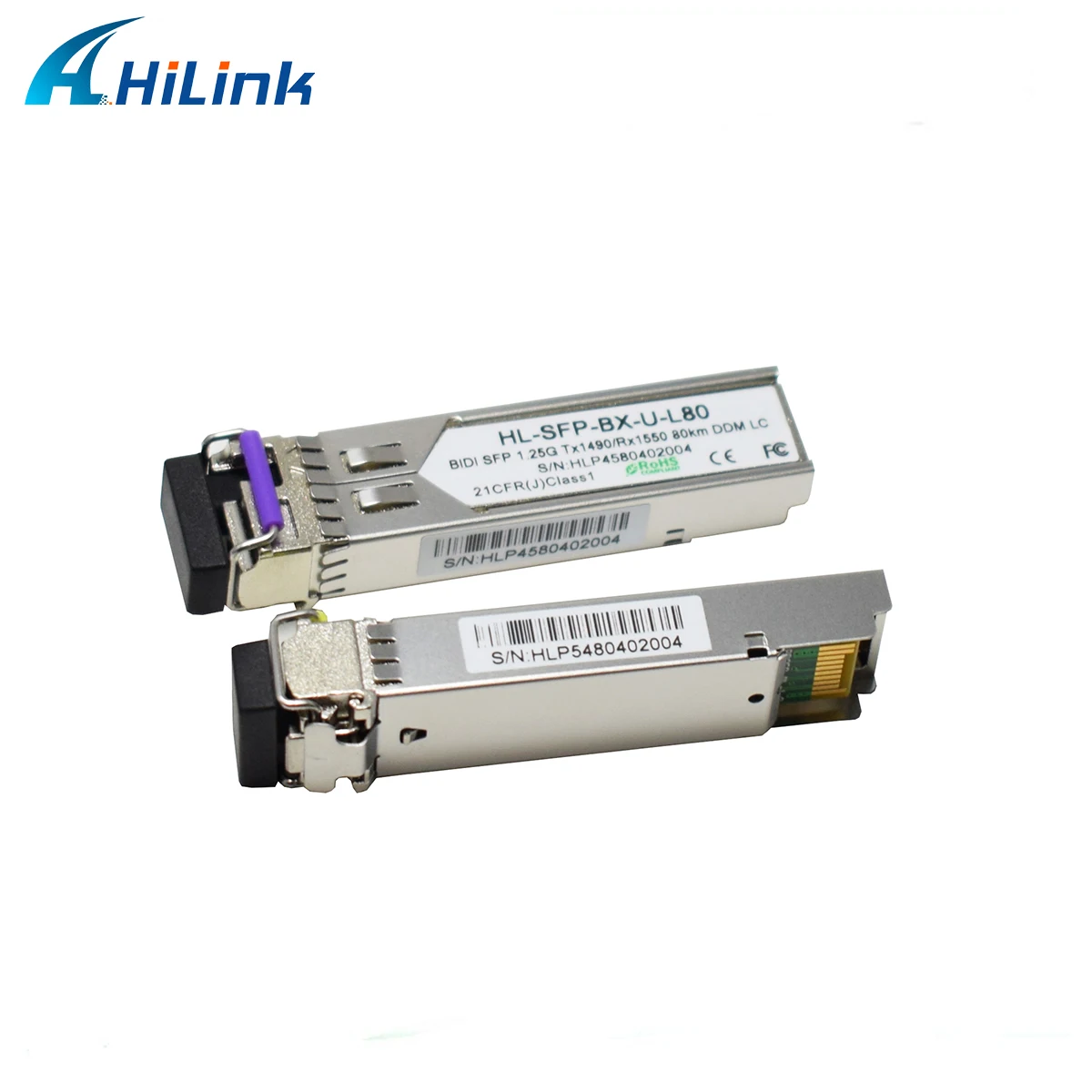

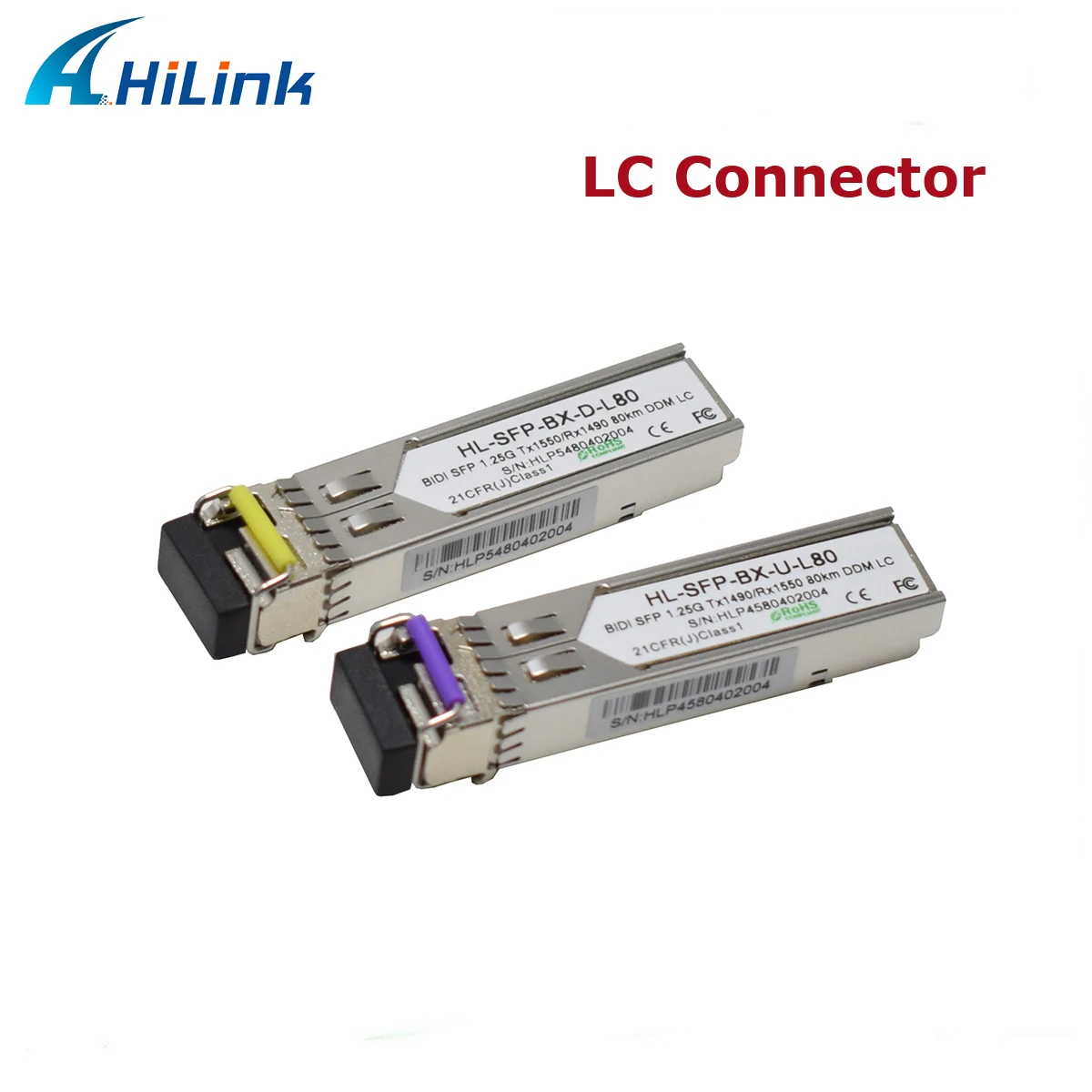

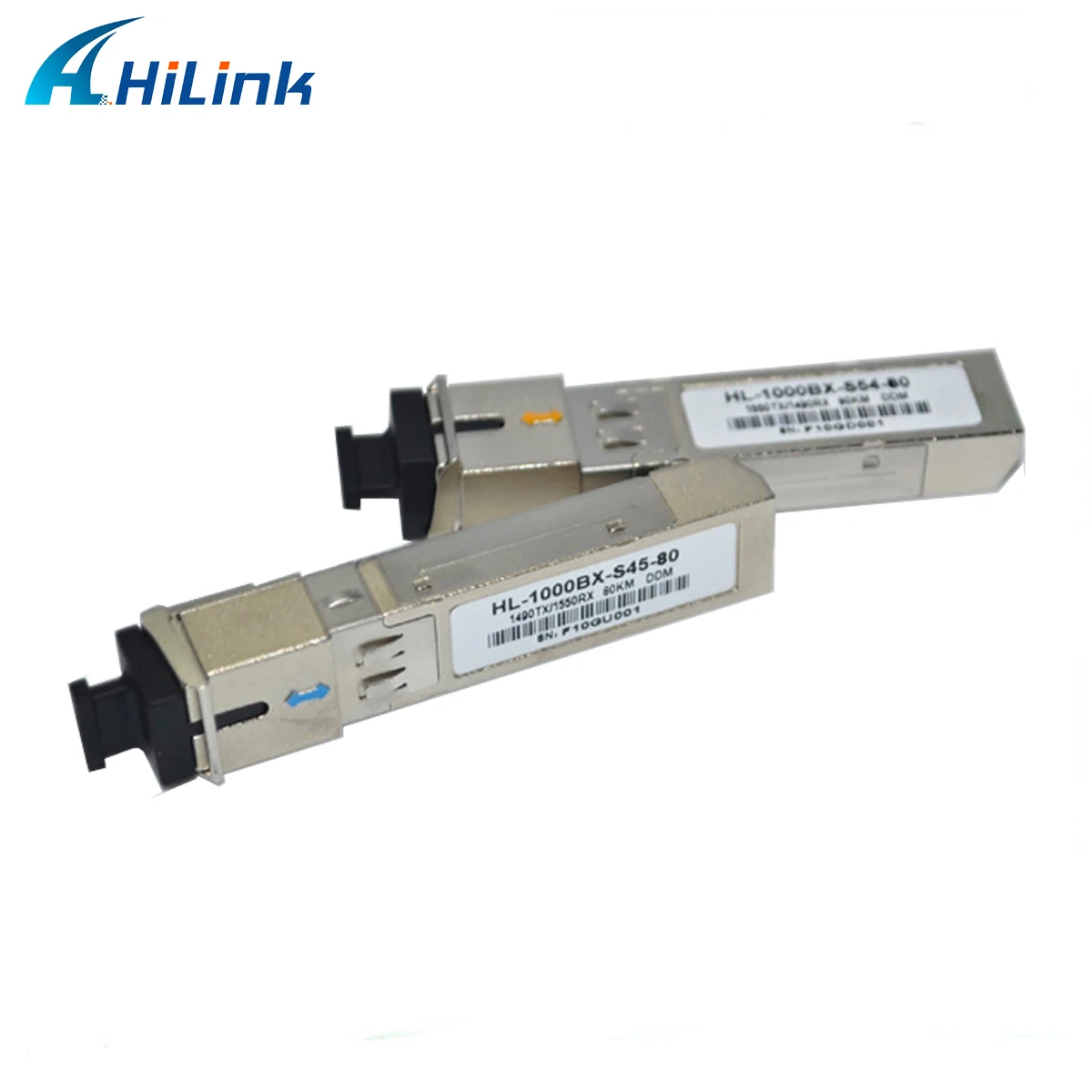

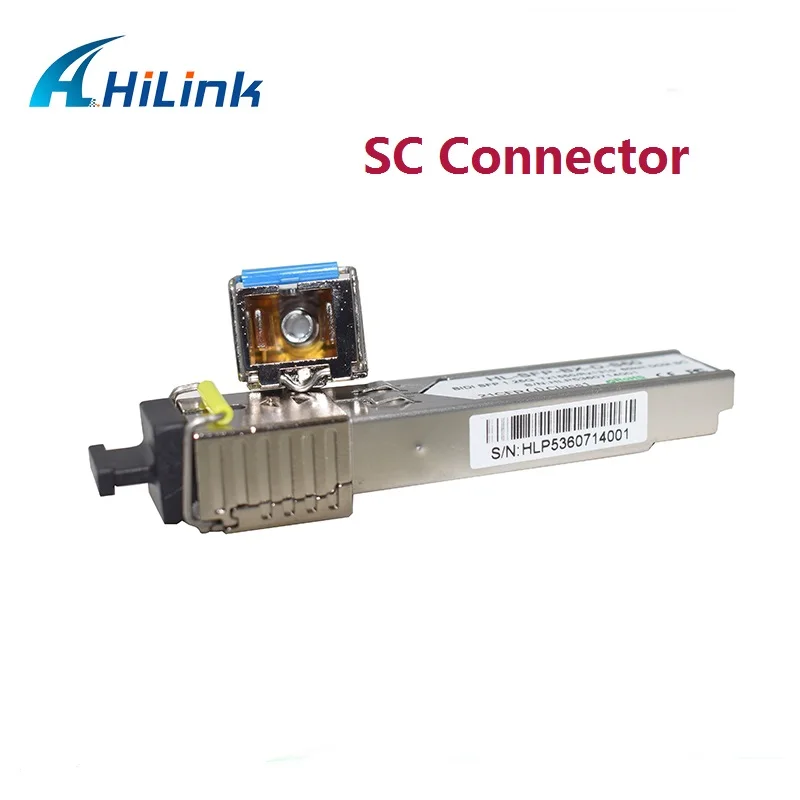

Product picture show:
Company Information:
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need.Please send us inquiry.We will follow up shortly.
